LED Arcade Buttons Wiring Harness

LED Arcade Buttons Wiring Harness

$14.00 AUD
$14.00 AUD
Sale Sold out
Shipping calculated at checkout.

In stock

  • Retro Ready
  • Easy To Install
  • Level Up Your Build
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
  • Arcade Grade Quality
  • 30 Day Easy $ Back Returns
  • FREE Shipping Over $65

Bring your arcade build to life with illuminated buttons — made simple.

Our LED Wiring Harness makes lighting your arcade buttons fast and hassle-free. With a pre-configured daisy-chain setup, there’s no need for complicated soldering or extra wiring, just simple plug and play.

Key Features

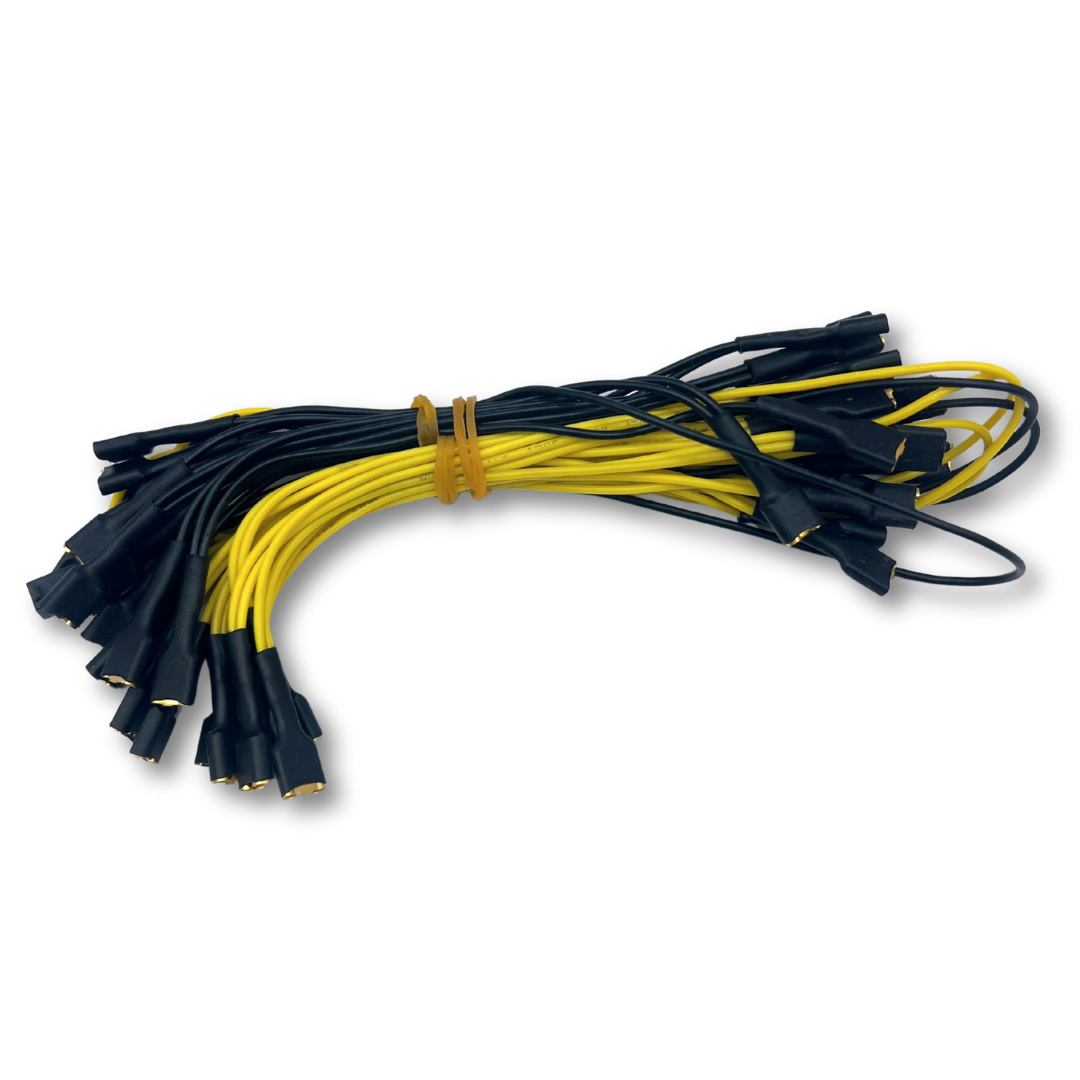

  • Daisy-Chain Design: One harness powers all your button LEDs, jumping from one button to the next.
  • Easy Connection: Yellow = + (positive), Black = – (ground) for quick identification.
  • Universal Fit: Works with both our pre-loaded systems and USB encoder boards (emulator builds).
  • Plug & Play: Includes a quick-connect adapter (for pre-loaded units) or direct connection to the +5V header on USB encoders - See our wiring diagrams,

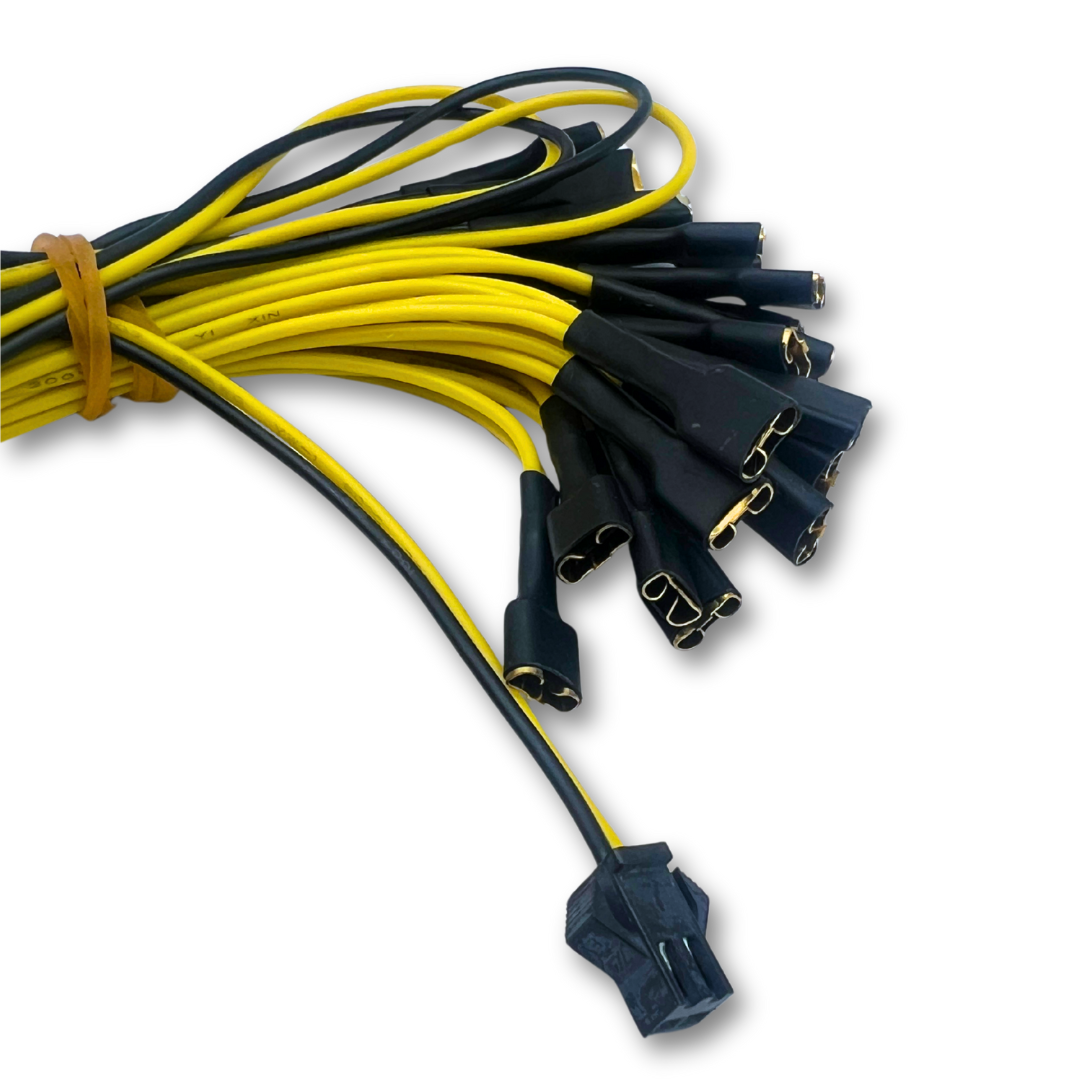

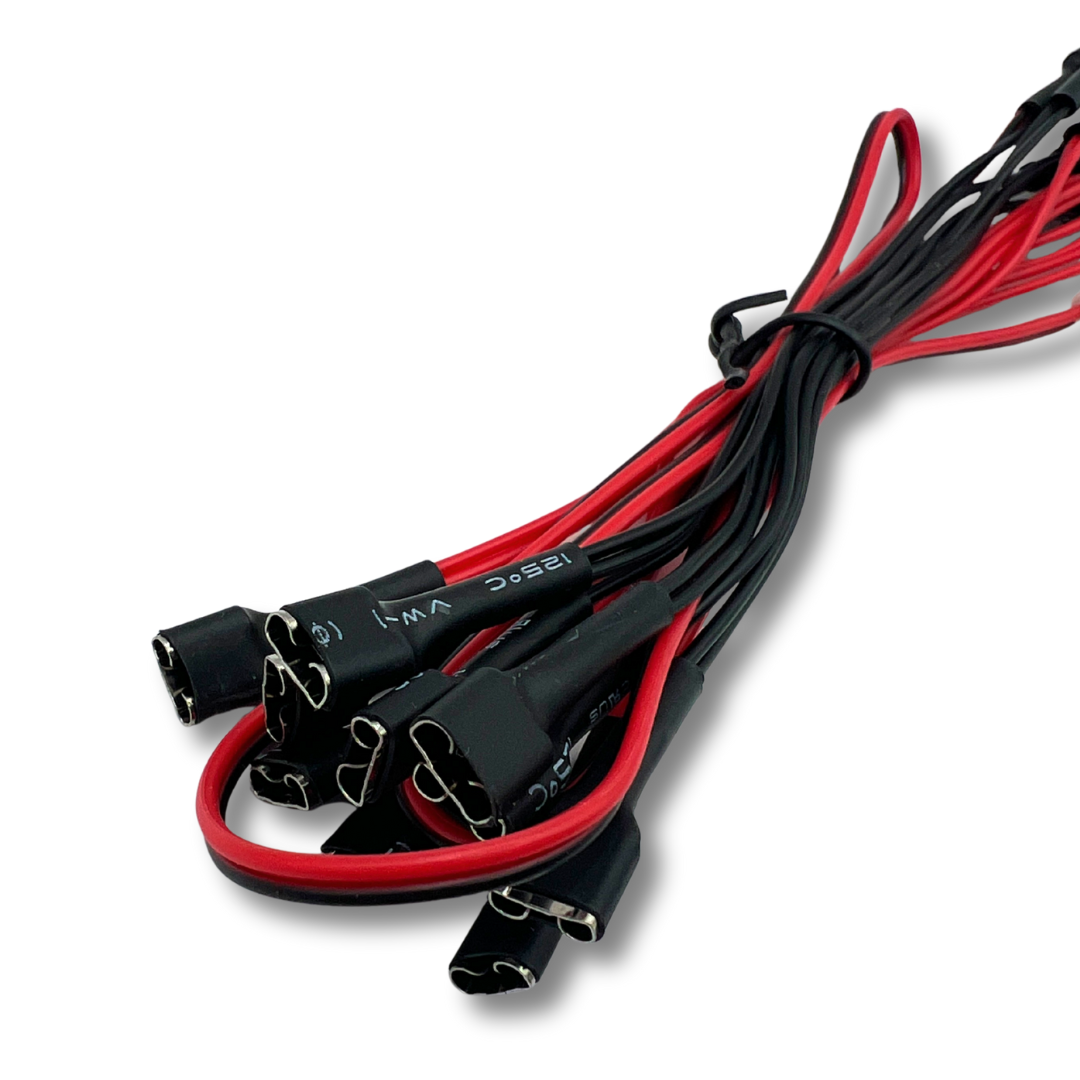

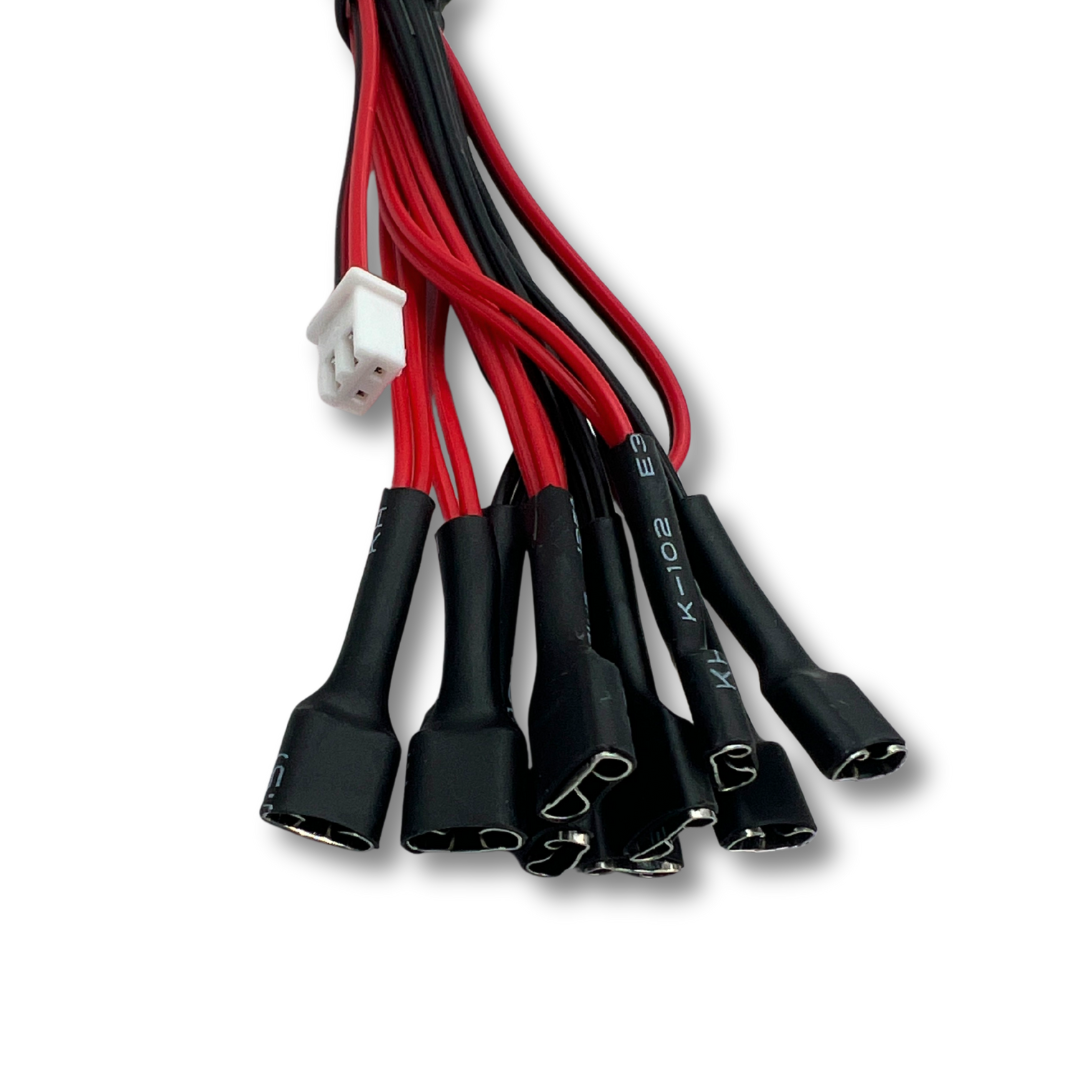

  • Durable Build: Flexible insulated wiring with secure crimp connectors for a reliable installation.
Infographic showing benefits of arcade LED wiring harness: daisy chain design, plug and play setup, Arcade Revival compatibility, and tested reliability

What’s Included

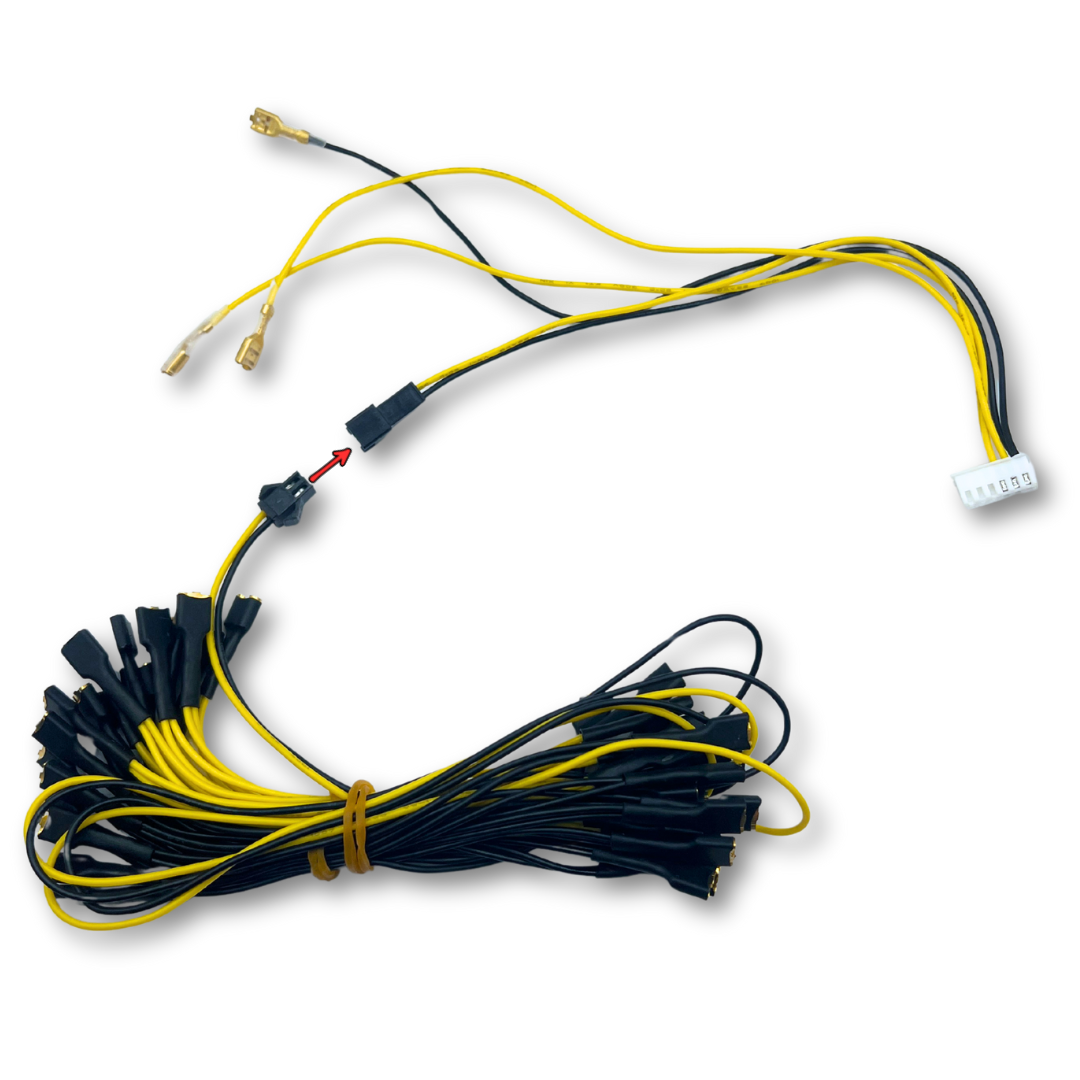

  • 1 × LED daisy-chain wiring harness

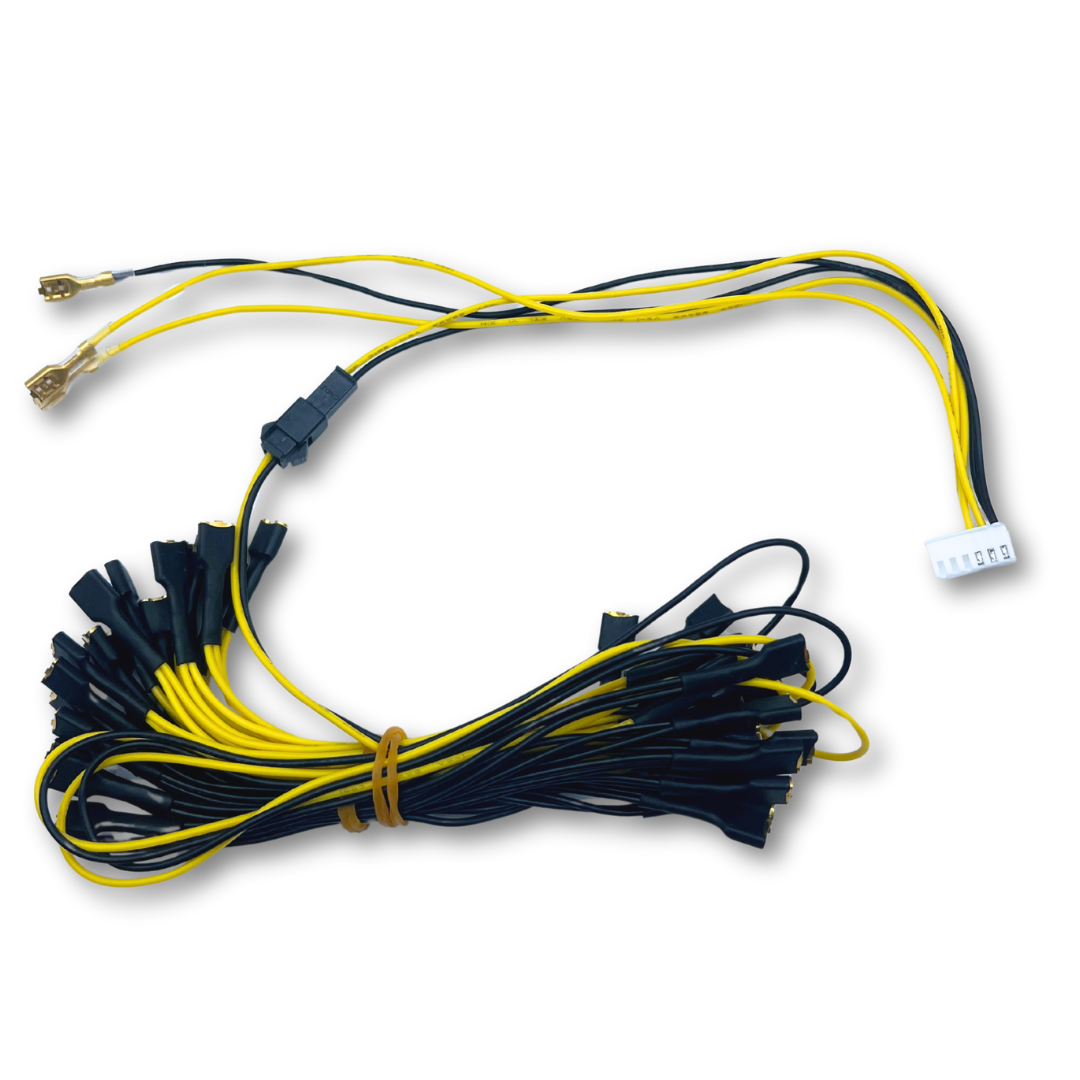

  • 1 × Adapter cable (for pre-loaded system users)

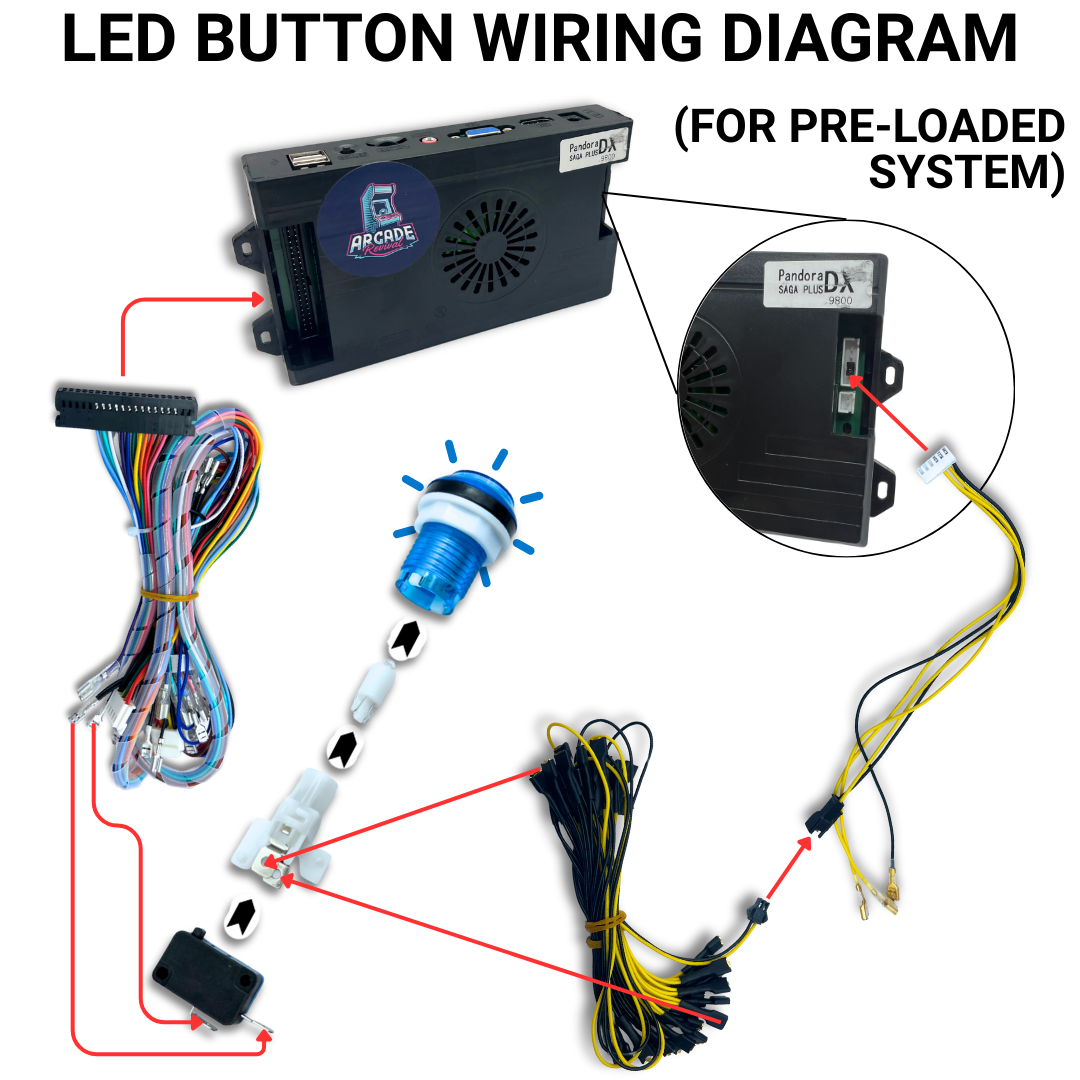

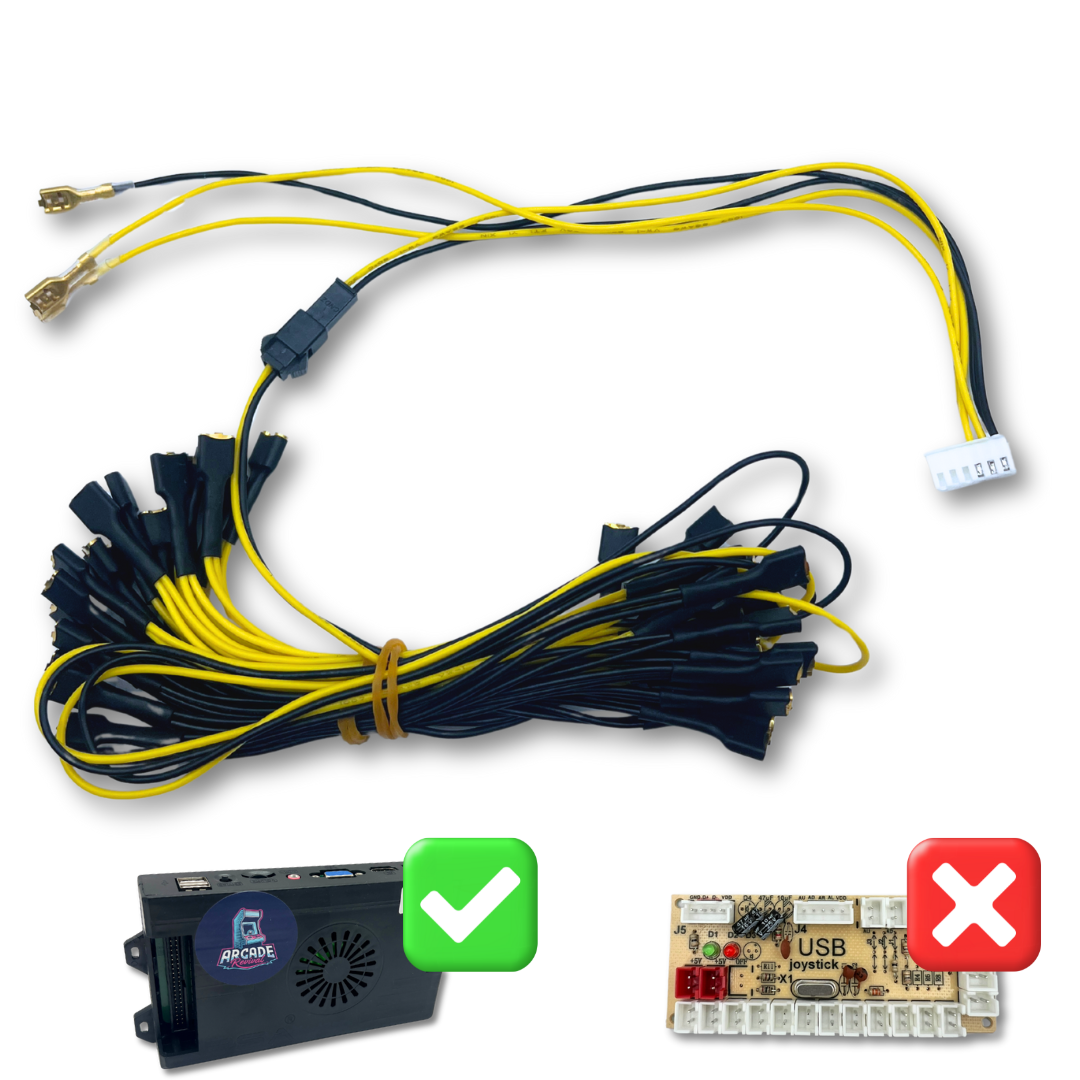

LED button wiring diagram for arcade Pandora pre-loaded system with daisy chain harness

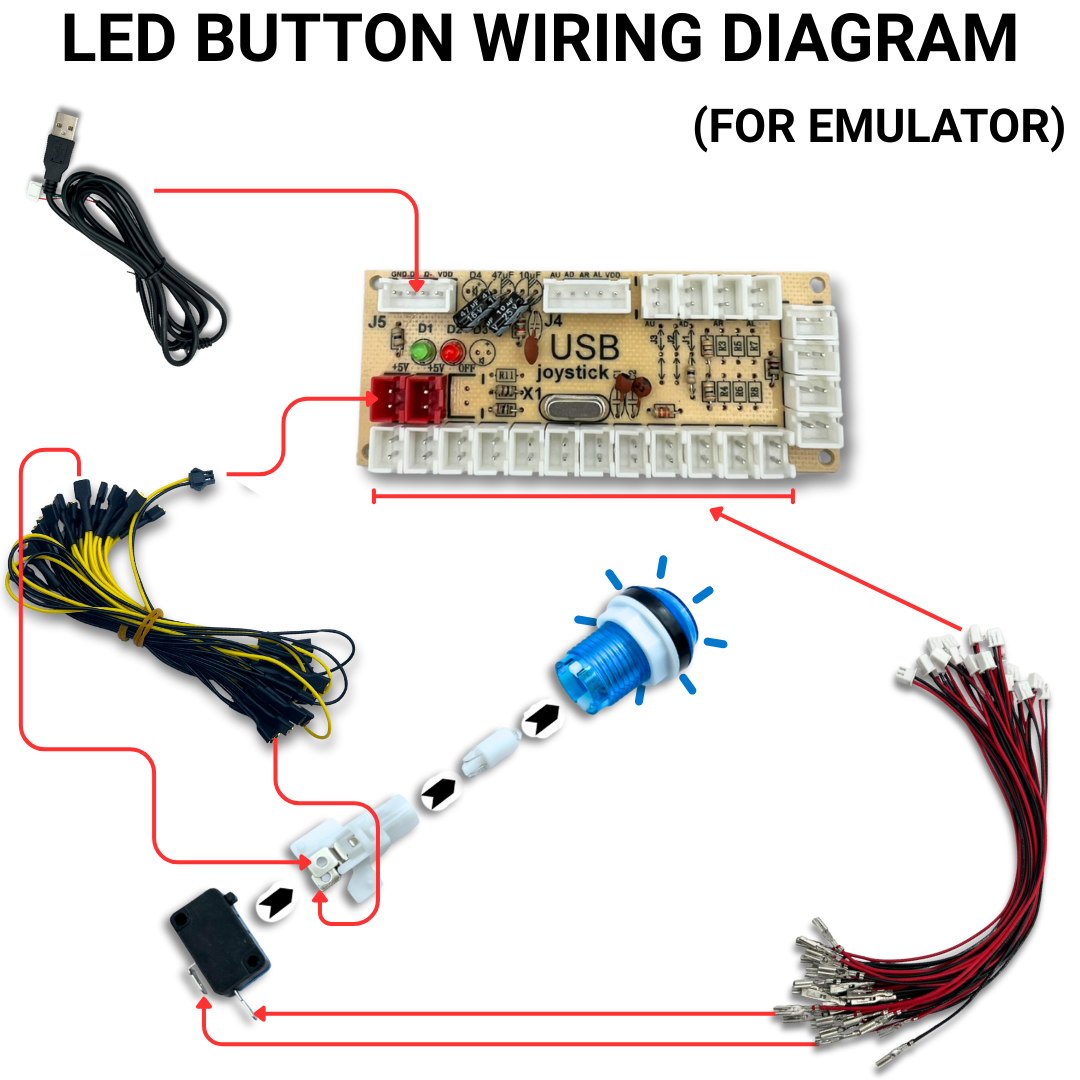

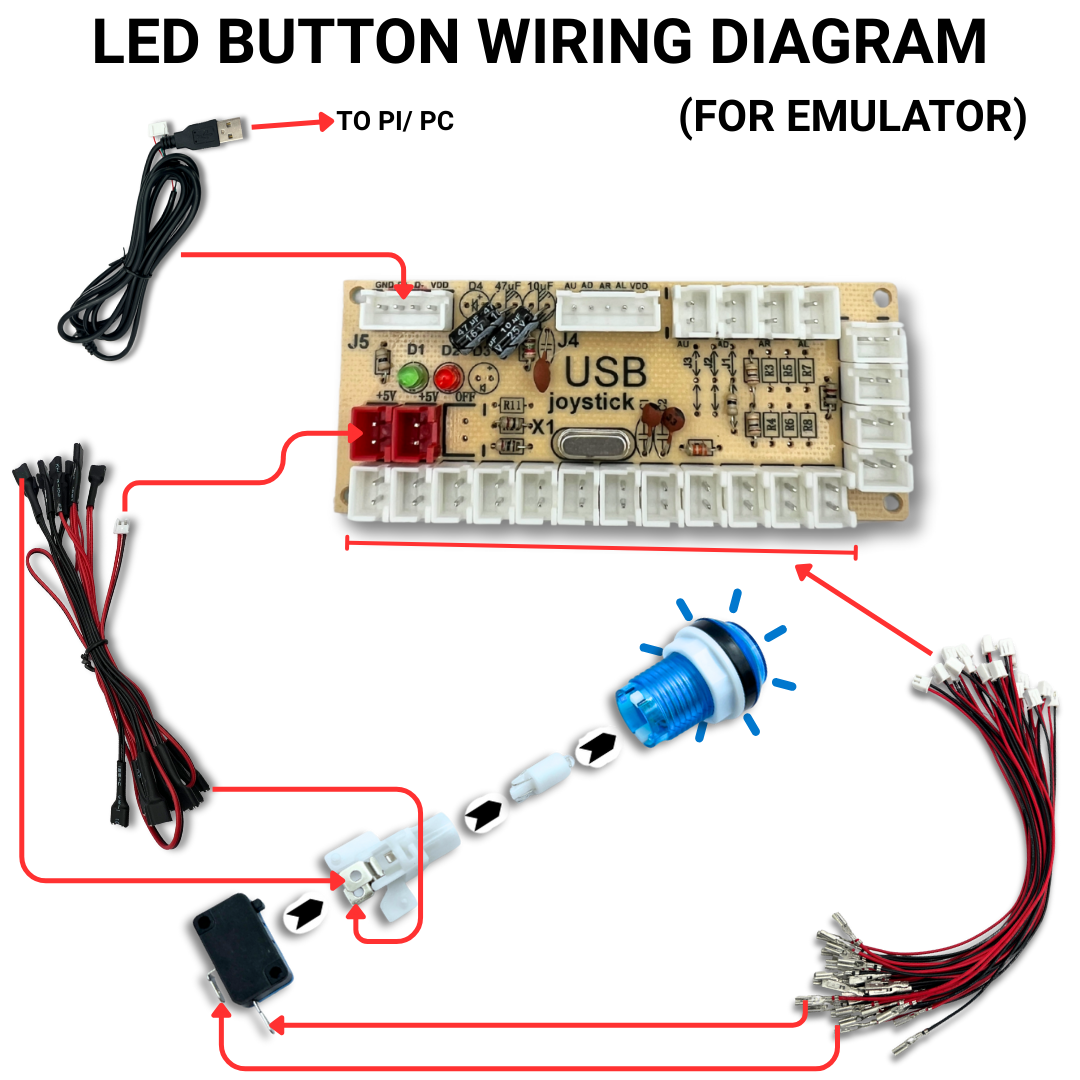

LED button wiring diagram for arcade USB encoder emulator system showing harness, button, and microswitch connections

Built for Arcade Revival Builds

Made to fit perfectly with all Arcade Revival kits, components, and guides. Whether you’re running a pre-loaded system or a USB encoder emulator setup, the connections are designed to slot straight in without modification.

By choosing Arcade Revival wiring, you can be confident everything is compatible, tested, and ready to work with your build; no guesswork, no headaches.
